Features:
- Siemens PLC program control: Manufactured by strict production process, the internal circuit adopts anti-jamming technology and Siemens PLC control program, which has accurate position and temperature control, stable operation and durability.

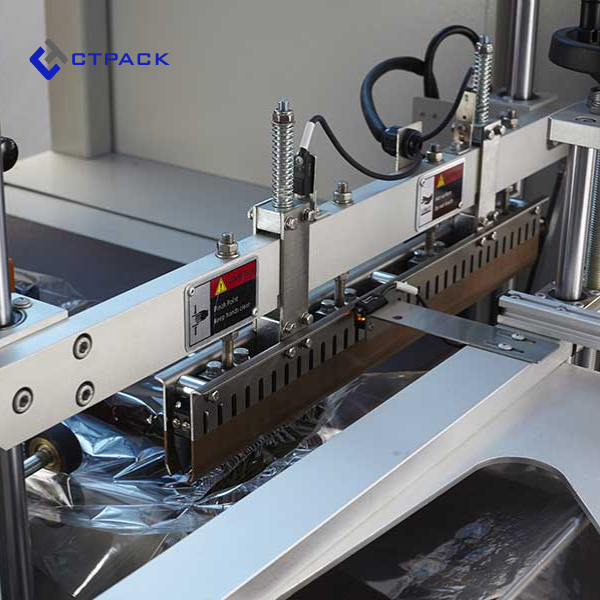

- Constant temperature sealing cutter: The cutter is not a mucous membrane, does not break, and the sealing line is thin and firm.
- Visual window shrinking machine: With visual window shrinking, the shrinking effect is clear at a glance, which is convenient for users to watch.
- High-temperature resistant silicone tube: The furnace cavity is equipped with a number of high-temperature resistant silicone tubes, which are heated at a constant temperature and have a long service life.

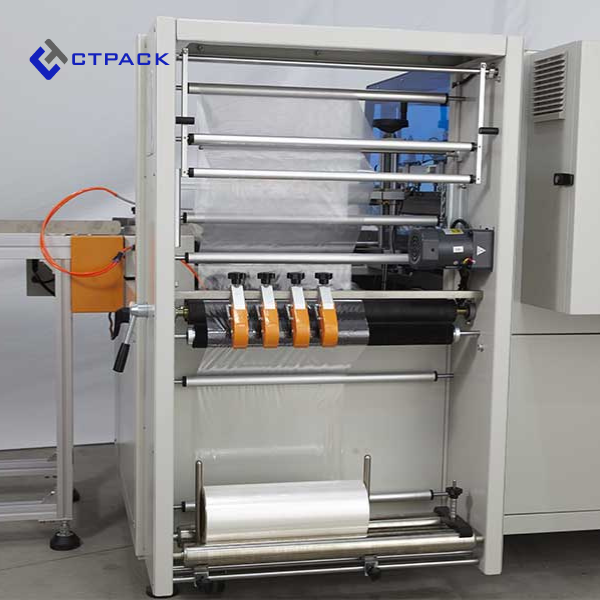

- Waste film device: Equipped with an automatic waste coiling device, controlled by a separate motor, the waste is easy to disassemble.

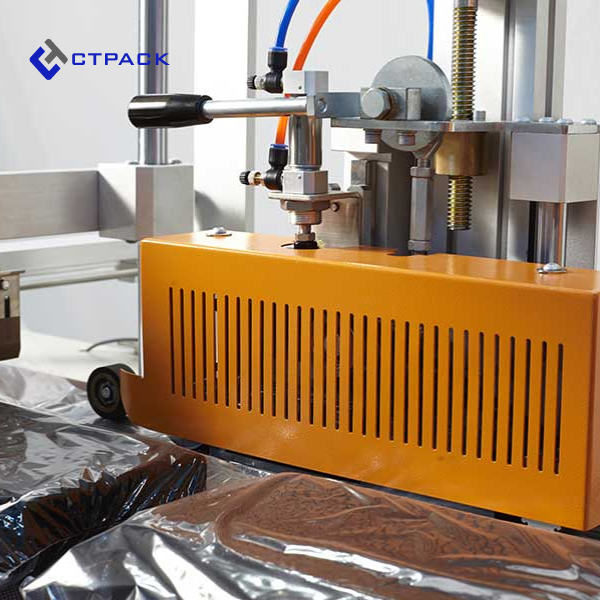

- Convenient adjustment: When the size of the package is changed, manually adjust the adjustment handle without changing the mold and bag maker.
Specifications:
| Model | GPL-5545CI | GPS-5030LW |
| Film | POF | POF |
| Packing Speed | W+H≤400mm，H≤170mm，L≥100mm | L≤500mm,W+H≤450mm,w≤350mm,
H≤230mm |
| Cutter size / Tunnel size | 490mm | L1500×W500×H300mm |
| Max Temperature | 280°C | 200°C |
| Electrical | 220V/380V 50-60Hz 3 Phase | 220V/380V 50-60Hz 3 Phase |
| Power | 6.5A | 25A |
| Air Compressing | 0.6–0.85MPa | / |
| Table Height | 850-900mm | 850-900mm |
| Machine dimension | L1720*W1465*H1320mm | L1850×W1095×H1325mm |
| Machine Weight | 530 kg | 500 kg |
