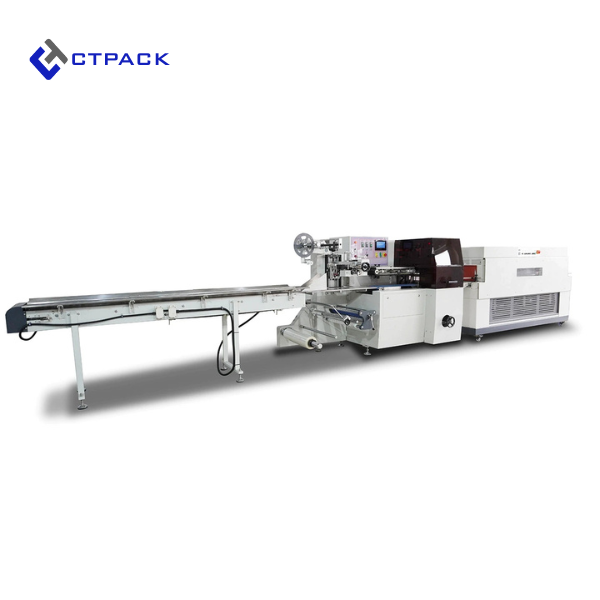

Automatic Electrostatic Adsorption Pillow Heat Shrink Packaging Machine
Specifications:
| Model | RS-590B |
| Sealing Type | High Speed Flow Sealing (Electrostatic Adherence Type |
| Installed Power | Sealer: 220V/50-60Hz/1Phase Tunnel: 380V/50-60Hz/3Phase |
| Packing Capacity | 150 Packs per Minute (Depends on Product Size) |
| Sealing Height | 125MM |
| Packing Width | 240MM |
| Packing Size | Width + Height ≤ 450MM |
| Film Type | Single Layer POF Film |
| Max Film Roll Size | 590MM (Width) X 280MM (Outer Diameter) |
| Working Height | 780-850 MM |
| Sealing Machine Dimensions | 4930 X 1130 X 1500 MM |
| Conveyor | Chains with Rotating Silicon Coated Rods |
| Rated Power Consumption | Max. 16 KW |
| Working Height | 780 – 850 MM |
| Machine Material | Carbon Steel |
| Tunnel Machine Dimensions | 2400 X 600 X 1550 MM |
| Weight (Net/ Gross) | 1600KGS/ 1680KGS (For Reference Only, Including Sealer and Tunnel) |
