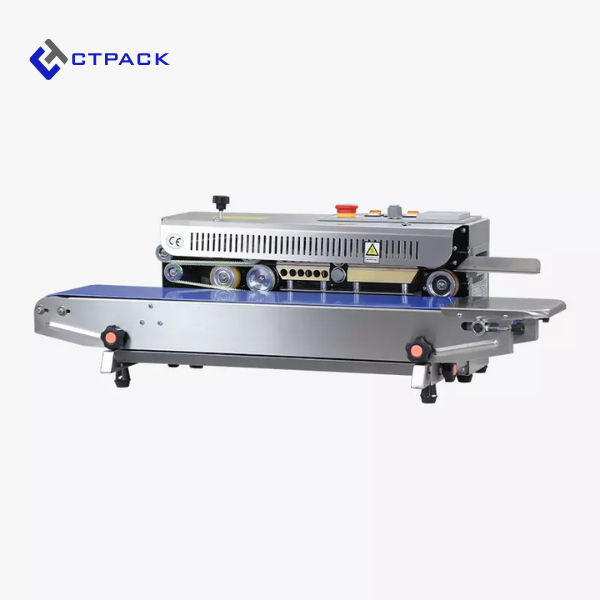

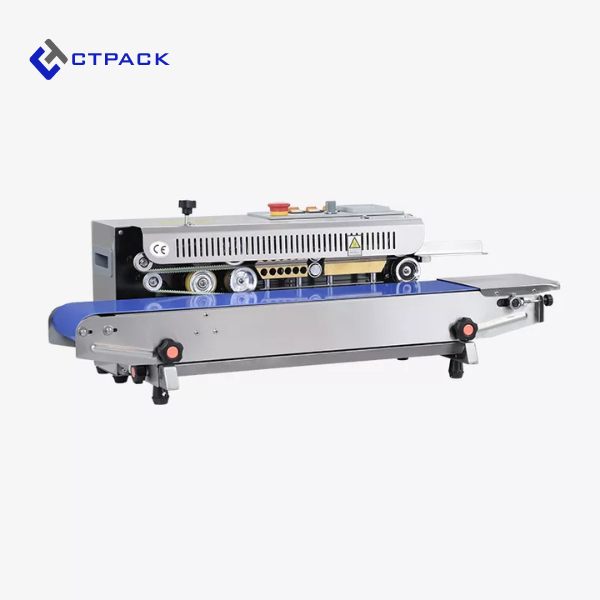

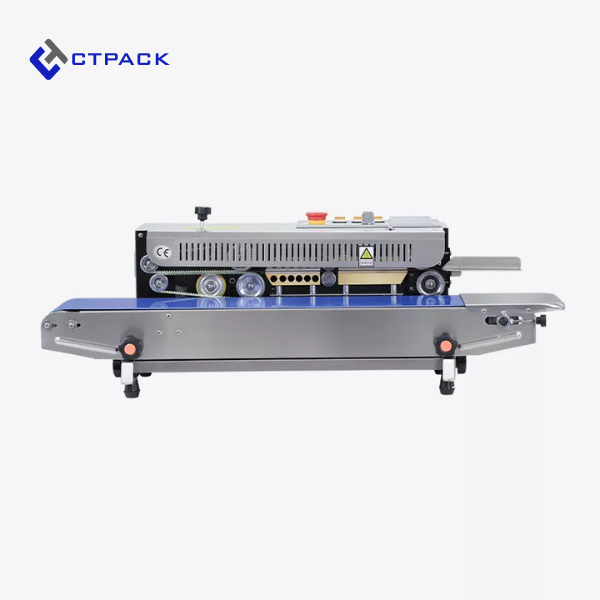

Continuous Band Sealer FRB-770I

FRB-770 series is available in three models: horizontal model (FRB-770I), vertical model (FRB-770II), and floor-standing model (FRB-770III). The machine is ideal for sealing small packages, which adopts a constant temperature control system and step-less speed regulation mechanism.

Features

  • Reliable performance
  • Simple operation
  • Convenient maintenance
  • Wide range of application
  • Constant temperature control system
  • Stepless speed regulation
  • Embossing wheel and counting device are optional

Application:

  1. FRB-770 series plastic film bag continuous sealing machine is suitable for sealing all kinds of heat-sealed packages continuously. Such as PE bag, accordion bag, aluminum foil bag, kraft paper bag, electrostatic bag, Yin-Yang bag.
  2. It widely use in the food, pharmaceutical industry, chemical industry, agriculture, lubricating oil, and other industries.
  3. To use in the place where there is a restriction on space, such as small factory, monopolization shop, and workshop, etc.

Parameters

MODEL FRB-770I FRB-770II FRB-770III
Voltage (V/Hz) AC 220/50 AC 220/50 AC 220/50
Motor Power (W) 50/100 50/100 50/100
Sealing Power (W) 300*2 300*2 300*2
Speed (m/min) 0-16 (0-24) 0-16(0-24) 0-16 (0-24)
Seal Width(mm) 10 10 10
Distance from Sealing Center to Conveyor(mm) 15-40 150-270 15-40
Distance from Base Plate to interior Conveyor(mm) 60-120 60-120
Max.Distance from Sealing Center to Bag Opening(mm) 21 21 21
Temperature Range 0-300 0-300 0-300
Printing Type Steel embossing wheel for printing(optional) Steel embossing wheel for printing(optional) Steel embossing wheel for printing(optional)
Conveyor Size(L*W)(mm) 844*153 844*153 844*153
Overall Conveyor Load(kg) ≤10 ≤10 ≤10
External Dimensions(L*W*H)(mm) 844*375*310 844*390*450 844*555*800
Net Weight (Kg) 21.5 24.5 29
