DS2816 Thermal Shrink Packaging Machine

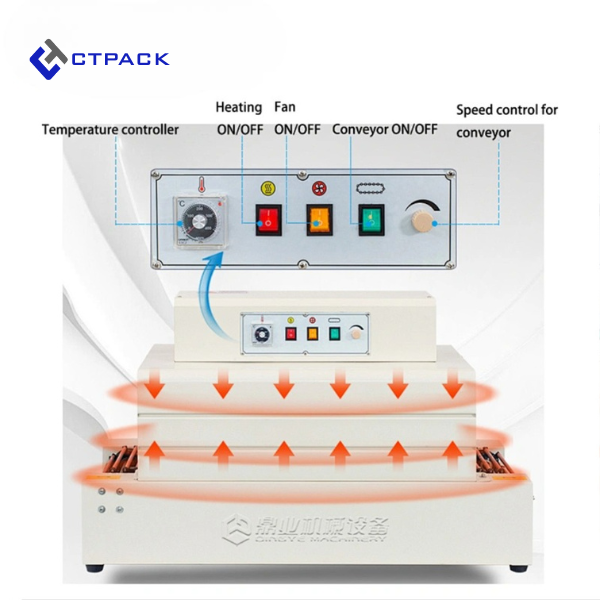

DS2816 heat shrink packaging machine is suitable for shrinking small products, and has the advantages of small size, small footprint, economical and so on. It is suitable for far-infrared heat shrinkable thin films such as POF, PVC, PP, POP, etc. The thickness of the shrink film should be in the range of 0.01-0.04 mm. Quartz heating tubes are located at the top, bottom and sides of the shrink tunnel, the temperature of the shrink chamber and the speed of the conveyor belt are adjustable.

Model DS2816
Power source 220V 50-60Hz
Power 3.6KW
Conveyor speed 0 -12m /min
Tunnel size(LxWxH) 750*280*160mm
Conveyor loading 5KG
Machine size (LxWxH) 1000*450*609MM
