Specification:

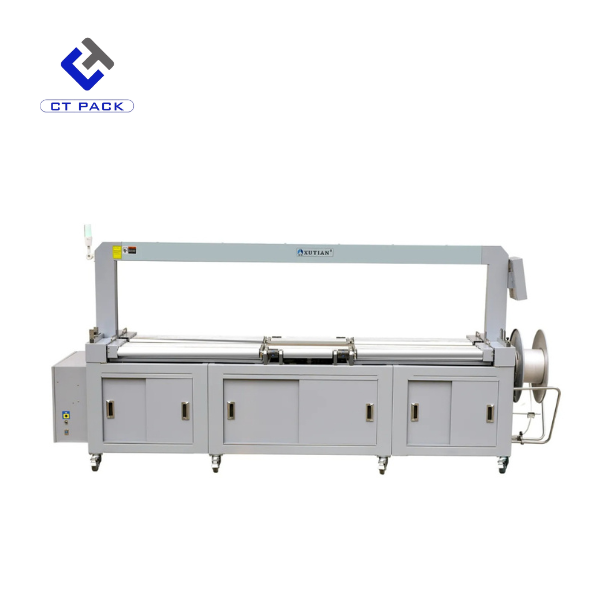

| Model | Fully automatic high table steel roller table strapping machine |
| Item no | Q8VC2-T |
| Material | PP strap |
| Material width*thickness | Vergin PP material 10.5-11.5mm(width) x 0.4-0.65mm (thickness) |
| roll Inner diameter | Ø200MM |
| Arch size | W2200 x H600mm |
| Max strapping size | L No limit*W 2100 x H550mm |
| Min strapping size | L 260*W260*H100mm |
| Loading weight | 2-100KG |
| table height | 780-850mm(Can be adjusted) |
| power | 220V50Hz |
| Contral system | PLC+Touch Screen |
| Motor | CHINA VTV Brushless DC motor |
| strapping speed | 1.7 seconds/strap |
| Table conveyor | steel roller conveyor, 18m/min, frequency conversion speed regulation |
| Tension | 20-400N |
| Welding method | Persistant heat sealing |
| Packing method | Manual or automatic 1-3 straps optional |
| Applicable industry recommendation | Hardware, electrical appliances, furniture, building materials, etc. |
| Customizable items | 1. Dunker DC motor or brushless motor 2. PCB+LCD screen control system 3. Arch size |
