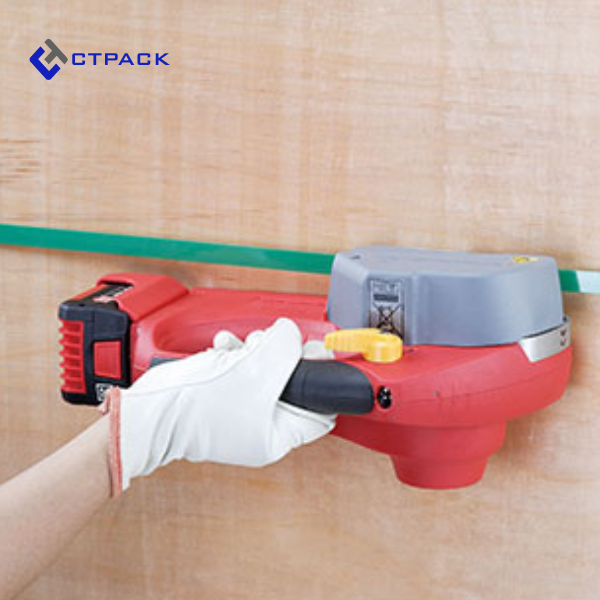

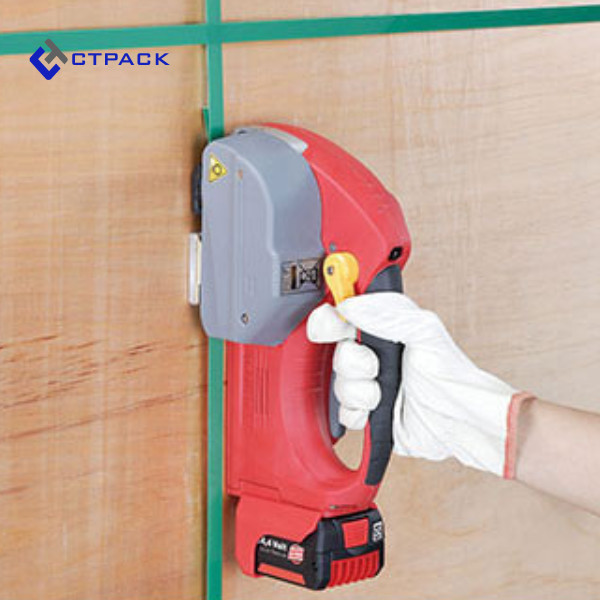

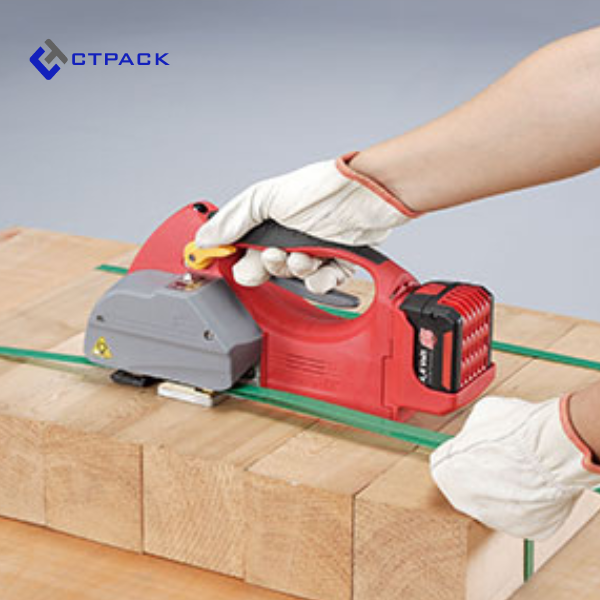

H-45L Helios Battery Powered Strapping Tool

Helios H-45L is a battery powered strapping tool with superior features and performance. It is suitable for most of the strapping requirements in every application. Helios H-45L delivers the highest productivity and performance to meet the customer’s packaging needs.

Features

  • Easy Single Handheld Operation
  • Quick and Simple Adjustment
  • Friction Weld Sealing Technology
  • Automatic mode offers fast, one-button tensioning and sealing. The strapping cycle can be done in less than 3 seconds.
  • Simple adjustments for strap tension and sealing time
  • Easy strap threading
  • Ergonomic and rugged design

Options

  • Suspension bracket
  • Bottom base wearing protection plate

Technical Data

Tension Range up to 250 kg
Strap Width 9 mm (H-45L-1-09)

11 mm – 13 mm (H-45L-1-12)

15 mm – 16 mm (H-45L-1-16)

Strap Thickness PP 0.55 mm – 1.05 mm

PET 0.50 mm – 1.05 mm

Weight (incl. battery) 4.4 kg
Battery Bosch Li-Ion 18VDC 4.0Ah
Battery Charger Bosch

115V (110V-120V), 230V (220V-240V)

50/60Hz 1PH
