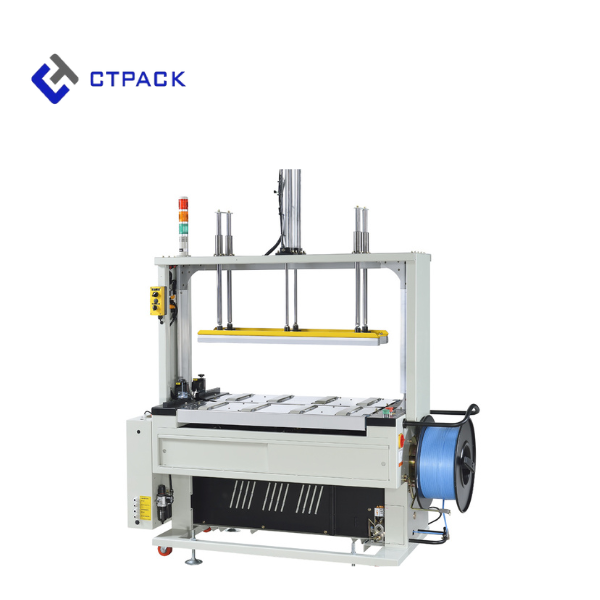

JN-85PBTAPN Fully Auto Strapping Machine (Power Belt W/Pressing)

  • Suitable for light duty
  •  Timing Belt for longer using (consumer)
  • Equipped with strapping sensor within 0/1/2 straps selector (option)
  • Penumatic pressing bar (option)
  • Combining with producting line
  • Customized arch size

Features:

    • Power timing belt table model with 2 sets of photocells and pneumatic pressing bar JN-85PBTAPN-2HT.
    • Optional straps No. is available for 1, 2, 3, or no strapping on the packages. More strap application is also available as an option before the order is fixed.
    • This model can incorporate input and output conveyors as a strapping system. The control system of conveyors can be connected with the model.
    • An optional photocell to control the table transmitting is available, which can auto-stop the table when no package is input
    • Customize arch size. Table seep inverter (optional)

Specification:

Model JN-85PBTAPN (Power Belt W/ Adjustable Height)
Arch size 850W x 600H mm(Standard)
Strap Cycle Speed 2.5 Sec/ cycle
Power Table Speed 17M/50Hz per Min.
Tension Strength 70Kgs / Max.
Table Height 830mm
Strap Width 9~15.5mm
Sealing Method Heat Sealing
Power Supply 110/220V 50/60HZ 1PH.

220/380V 50/60HZ 3PH

Dimensions 1551L x 640W x 650~800H mm
Machine Weight 307Kgs
