CT Pack & Automations

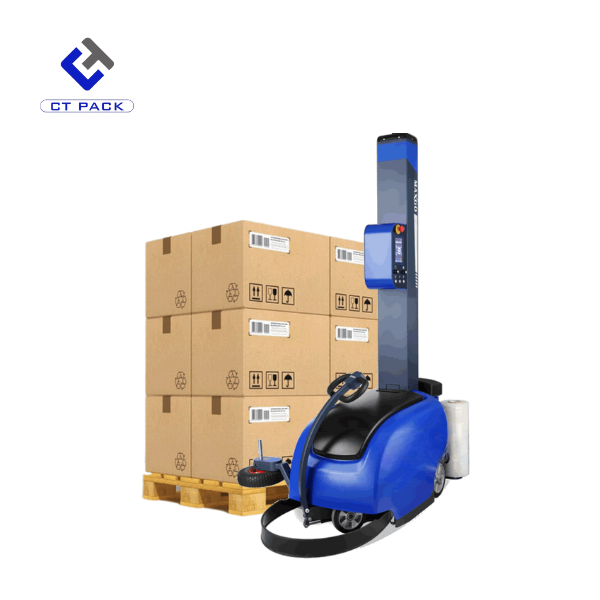

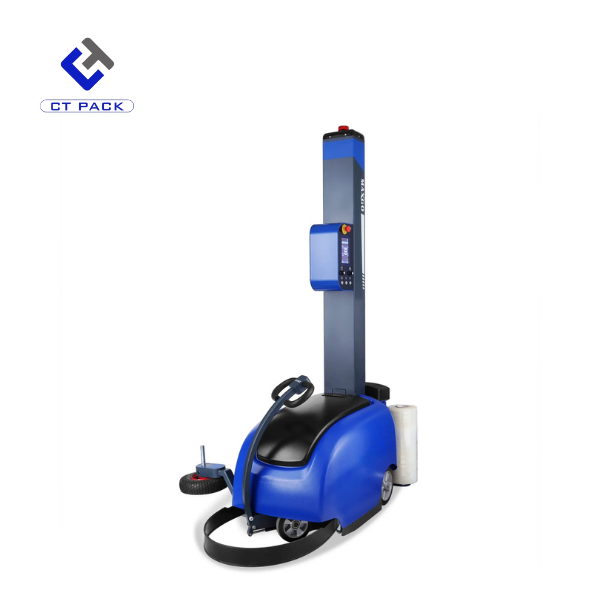

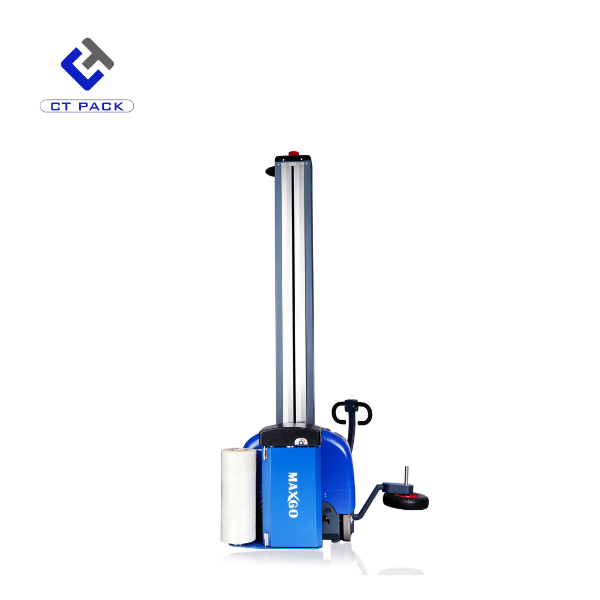

Maxgo Pallet Wrapper

Features:

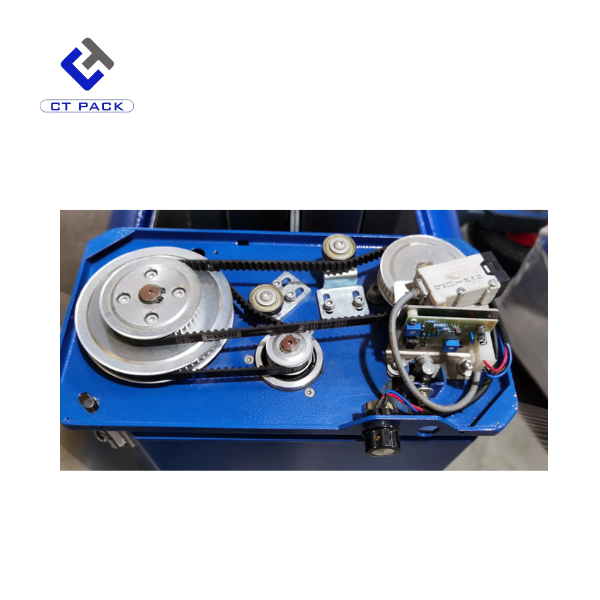

  • Belt driving film carriage
  • Battery charged
  • No weight limit
  • No pallet size limit
  • No pallet shape limit
  • Simens PLC control
  • Speed driver
  • Front Safety bumper
  • Stop at home position
  • Slow start and stop
  • Auto detecting pallet height
  • Can store 5 recipes

Specification:

Model No Maxgo
Description Robot pallet wrapper
Battery 100AH 12V x 2pcs
Power Supply 220V 50HZ 1phase/110V 60hz 1phase
Control System PLC+Green touch screen+Speed driving board
Max Moving Speed 80 meters/minute
Film Carriage Pre-stretch 250%
Max Pallet Height 2100mm (Option Max: 2500mm)
Max Pallet Size No limit
Min Pallet Size 600 x 600mm
Max Pallet weight No Limit
Min Pallet Weight 250kg
Moving Motor 0.4KW DC Motor
Lifting Motor 0.2KW DC Motor
Film Carriage Motor 0.35KW DC Motor
Charging time 12 hours
Working time 8 hours
Power 1200W
Machine Weight (NW) 320kg
Machine Dimention
L x W x H
1610 x 1250 x 2450mm
