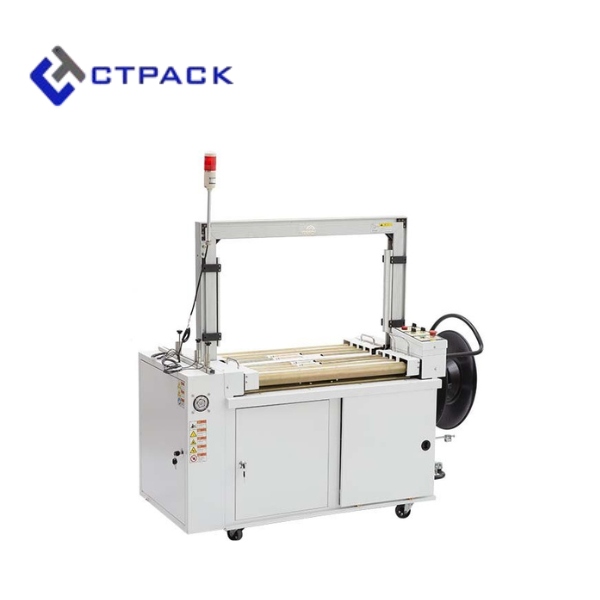

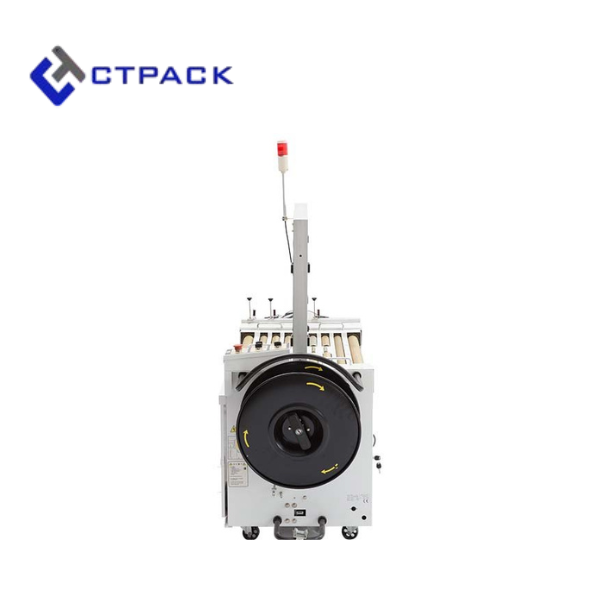

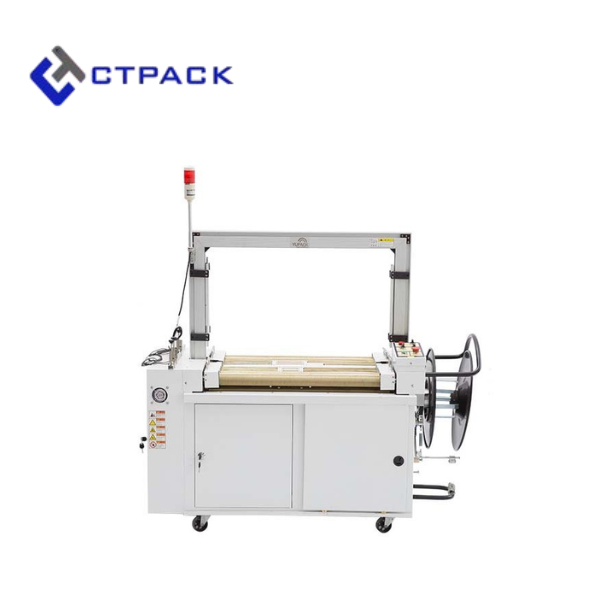

MH-102A Automatic strapping machine (belt table type)

MH-102A automatic strapping machine (belt table type) and MH-102A (high table model) belong to the same series, the difference is that the transmission part is belt or roller conveyors. The advantage of belt transmission method is more stable when conveying small and thin items, and it is mostly suitable for strapping paper, small bricks, and small cartons.

Features:

  • PLC control, more stable performance

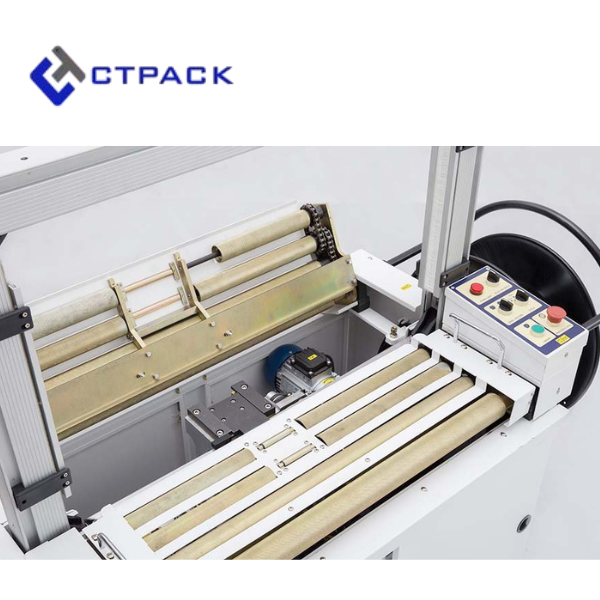

  • Belt conveying, smooth and noiseless

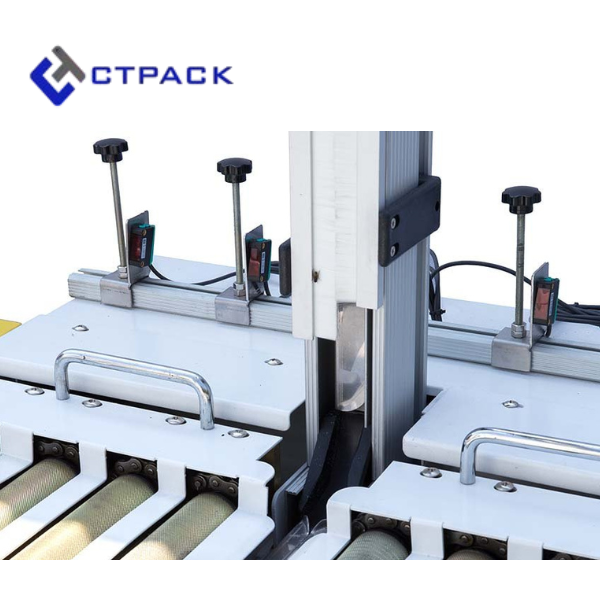

  • Automatic detection, packaging, and transportation, high work efficiency
  • Imported electrical configuration, longer service life
  • Optional automatic alarm device, automatic alarm for missing belt and fault
  •  Can be used alone or with unmanned packaging line

Technological parameters:

Model MH-102A
Strapping force 120kg
Strapping speed 2.5 s/strap
Frame size W800mm*H600mm(customizable)
Sutiable Strap width 9,12,15mm
Voltage 380V.50HZ  0.75kw
Machine Size 1450*630*1420mm
Machine weight 120kg
Electrical configuration LG“PLC” control,French “TE”,Japanese “OMRON”, “ZIK”  Electrical, Suitable for baling of regular products
