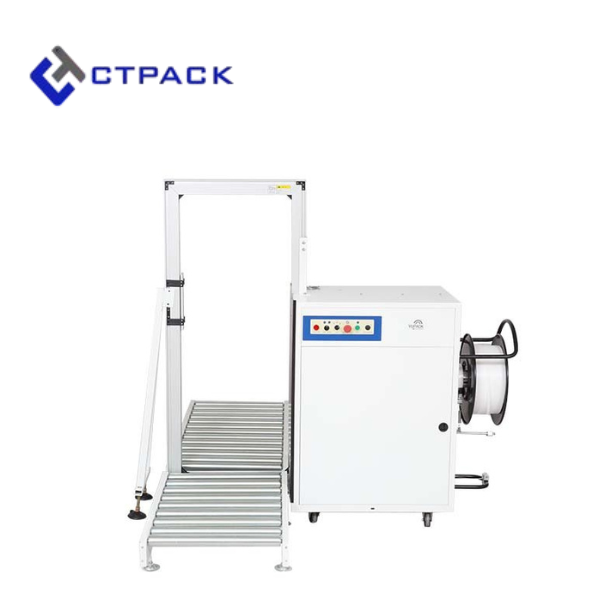

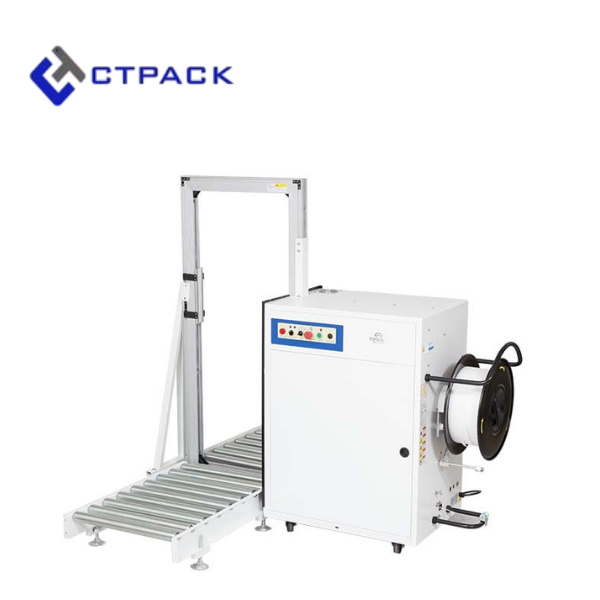

MH-103A Automatic strapping machine (Side strapping model)

MH-103A automatic strapping machine (side strapping model) is specially designed for heavier and larger items. The frame can be customized. Compared with other automatic strapping machines, the customized price of this machine will be lower, so it is a cost-effective product

Features:

  • Steel knife box for higher wear resistance
  • Unique tensioning structure design, stronger tensioning force
  • Side frame design for packing larger, heavier items
  • New electric heating device,  fast heating and long service life
  • Single-chip electronic control, complete functions and easy operation

Technological parameters:

Model MH-103A
Strapping force 120kg
Strapping speed 2.5 s/strap
Frame size W600mm*H800mm(customizable)
Sutiable Strap width 9,12,15mm
Voltage 380V 50Hz 0.75kw
Machine Size 1400*630*1100mm
Machine weight 150kg

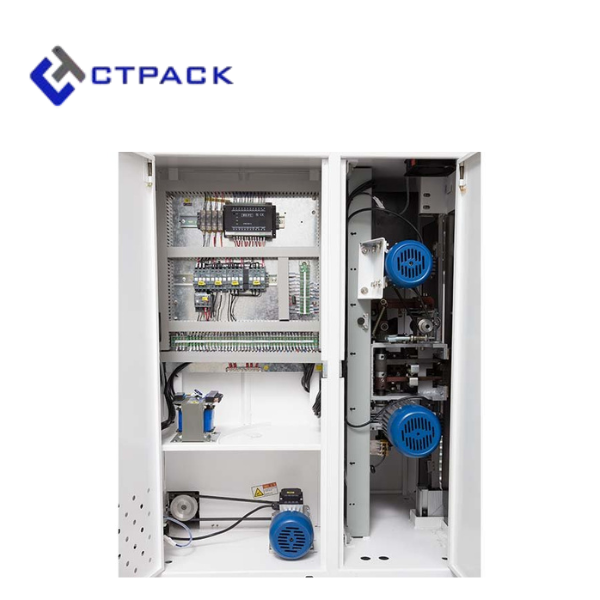

Electrical configuration LG“PLC” control,French “TE”,Japanese “OMRON”, “ZIK”  Electrical, Suitable for baling of regular products
