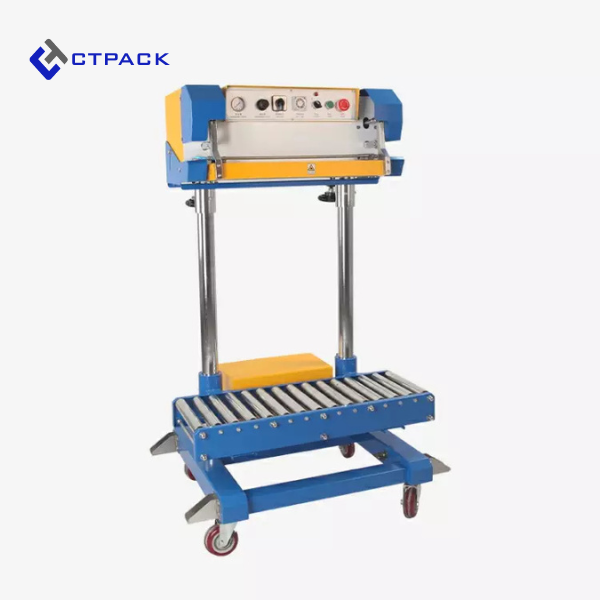

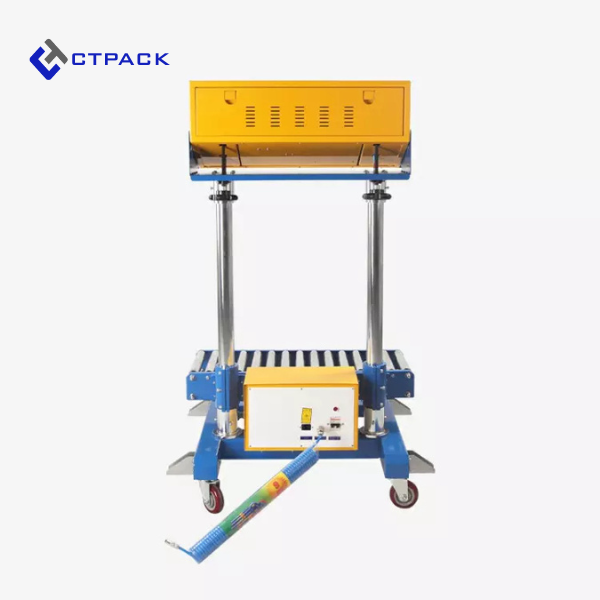

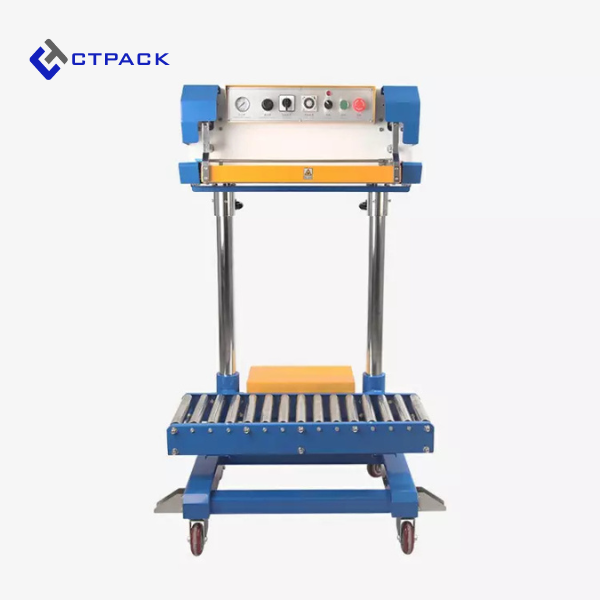

Pneumatic Heavy Duty Bag Sealer QF-600L(/S)

QF-600L is used to seal various plastic film bags and compound bags with max. sealing length of 600mm and max. carrying a load of 50kg. It adopts compressed air as a motive power with variable sealing pressure and reliable sealing quality. For a relatively thick bag, you can choose model QF -600L /S with a double heating function. According to special orders, the sealing length can be increased to 800mm, 1000mm.

Features:

  • Simple operation
  • With pedal switch
  • Equipping with any conveyor you want
  • Available for production line
  • Available for customization

Application:

  1. QF-600L pneumatic sealer is applied to seal bags such as M-fold PE heavy film bags, aluminum foil composite bags, PE inner film bags lined with woven bags, etc.
  2. The machine is widely used in the chemical industry, foodstuff, feedstuff industries.
  3. To use in the place where there is enough space, such as factory and warehouse, etc.

Parameters

Model QF-600L(/S)
Voltage (V/Hz) AC 220/50 110/60
Sealing Power (W) 500(800)
Air Compressor(W) (Mpa) 0.5(Equipped by User)
Seal Length (mm) 600、800、1000
Seal Width (mm) 10mm
Distance from Sealing Center to Conveyor (mm) 1150
Film Thickness(single layer)(mm) ≤0.18
Max. Package Sealing load(mm) 150-800
Max. Sealing Load(kg) 50
Adjustable Angle of Pressing Head (°) 20
External Dimensions(L×W×H) (mm) 905×690×1430
Net Weight (kg) 103
