Specification:
| Model No | Q80AP |
| Power Suppy | 220V 50Hz 1PHASE |
| Power | 850W |
| Strapping speed | 15 bundles/minArch size：1650mm(W)x500mm(H) |
| Strapping tension | 1-30 Kg |
| Strap Width | 5mm，6mm, 9mm |
| Strap thickness | 0.35m～0.65mm |
| Strapping roll diameter | Roll paper core inner diameter: 200mm Roll outer diameter:420mmRoll width: 190mm |
| Strapping QTY | 1 strap |
| Arch size | W 1250 x H 500mm Option: W 1650 x H 500MM |
| Max package size | 1200x450mm |
| Min package size | 70mm W x 20mm H |
| Machine dimension | 2100x705x2100mm |
| Machine weight | 550kg |
| Table height | 754～1100mm Adjustable |
| Working noise | 78dBA |
| Environment temperature | 0℃-40℃ |
| Air supply | 0.5-0.6MPa |
| Cylinder stroke | 40x500mm |
| Cylinder pressure | ～35kg Adjustable |
| Table conveying speed | 0.6 m/s |

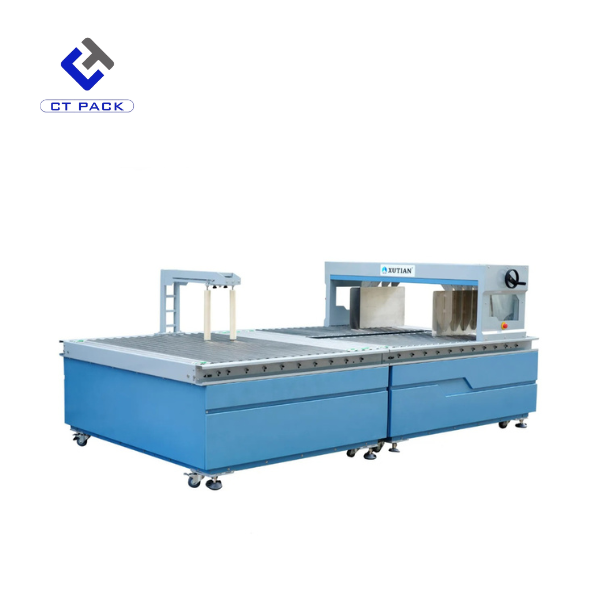

XT-SQ-01 4 Sides Squaring Machine
| Carton Size | L 400-1200mm x W 400-1250mm x H 0-350mm |
| Table height | 750-950mm |
| Cylinder stroke | 250mm |
| Conveyor speed | 50M/minute |
| Max Loading Weight | 15-25kg |
| Capacity | 16-20 times per minute, depends on carton size |
| Air pressure | 0.6-0.9mp |
| Air supply | More than 1m3/min |
| Power supply | 220V AC 50HZ |
| Power | 750W |
