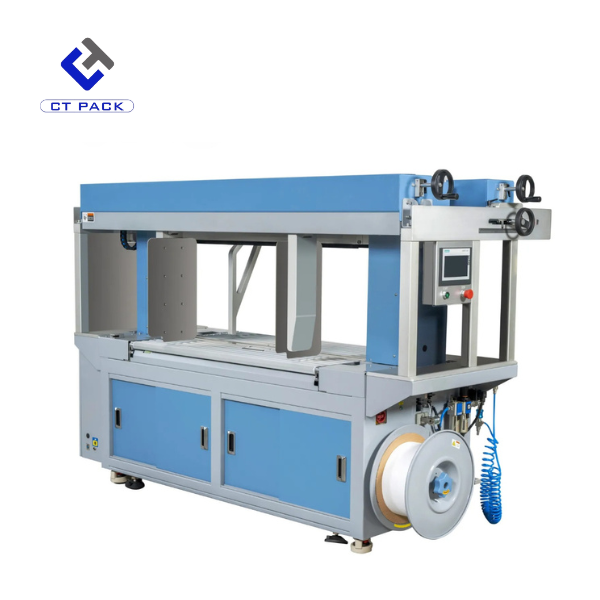

Q80SC-APJ Squaring Fully Automatic Strapping Machine

Features:

    • Squaring & Strapping combined application
    • Can run 0.25-0.8mm thickness PP strap
    • Power Roller Table
    • Manual and auto mode operation
    • Loop ejecting function and refeed function
    • Auto Feeding
    • Built for 24 hours continuous operation
    • Banding count function
    • Easy strap loading and unloading

Specification:

Model No Q80SC-APJ
Control System Simens PLC + Touch Screen
Applicable Material Virgin PP Strapping Band
Arch size W1250xH500mm
Max strapping size L x W1200x H 450mm
Min strapping size L 300 x W 300 x H 100mm
Strapping Speed 8 Straps/M
Strapping Tension 2-40kg Adjustable
Table Height 800-900mm Adjustable
Strapping Width 5-6mm /7-8mm/ 9-12mm
Strapping Roll Core 200mm
Strapping Roll Width 190mm
Sealing Method Heat Sealing
Power Supply 220V  50-60Hz
Max Loading Weight 25kg
Dimension L 2330 x W 1025 x H 1950mm
