Features:
-
- PRODUCT PROTECTION: Stretch wrapping your packages adds another layer of safety and prevents things like theft, pilferage, and damage.
- TAMPER EVIDENT: If your product is stretch wrapped, you have to break through the stretch film to get into the box. This acts as an efficient deterrent since any tampering or theft will be easily discernible.
- PRE-STRETCHING: Maximizes the value of your stretch film and decreases material usage.
- ENERGY EFFICIENT: Stretch film sticks to itself fairly easily, so this machine does not require heating systems that tend to use a large amount of energy.

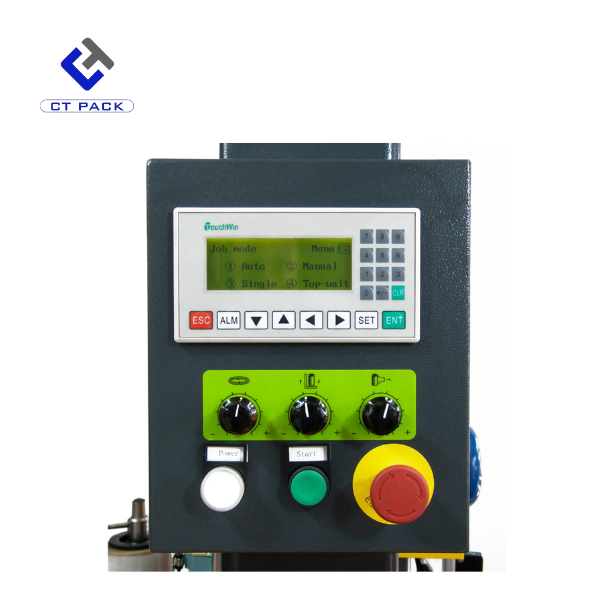

- FRIENDLY USER INTERFACE: This easy-to-use machine requires very little operator training.
- FLEXIBLE PACKAGE WRAPPING: With an adjustable top pressure plate, this machine can adapt to packages of different shapes and sizes.
- ERGONOMICALLY DESIGNED: Turntable is positioned at an easily approachable height, facilitating the placement of heavier or bulky loads.
- EASY ROLL CHANGEOVER: Straightforward, quick, and simple way of interchanging stretch film rolls.
- EASY TO MOVE: Built on top of breaking casters that facilitate machine relocation

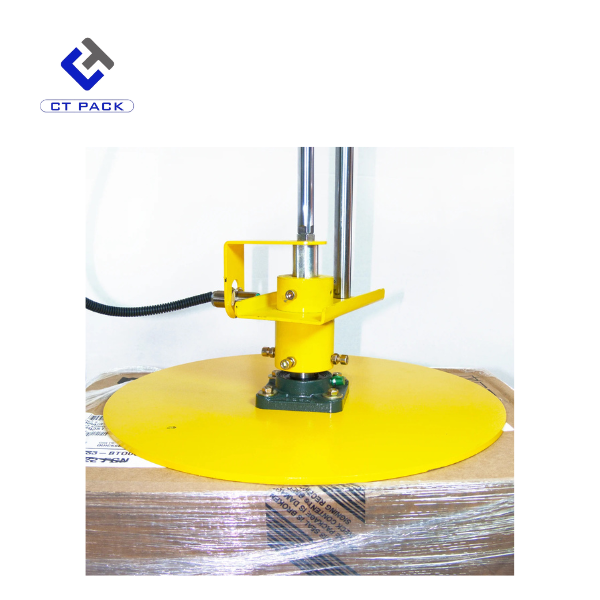

- TOP PRESSURE PLATE: Keeps products safe and secured while stretch wrapping them.
Specification:
| Operation | Semi / Auto |
| Pre-Strech | Yes |
| Extension Rate | – |
| Counter | No |
| Max Weight | 80 kg / 176 lbs |
| Turntable Diameter | 5mm,6mm, 9mm |
| Max Pallet Height | N/A |
| Stretch Roll Width | 50 cm / 19.7 in |
| Height From Ground | 48 cm / 18.9 in |
| Brand | JORES TECHNOLOGIES |
| Compatible With | Boxes |
| Actuation | Electrical / Pneumatic |
|
Construction
|
Rugged Metal |
| Base Type | Self Standing |
|
Includes Casters
|
Yes |
| Automatic Load Height |
Via Photo Sensor
|
| Platform Speed | 0-20 rpm |
| Load Size | 50-60 cm / 19.7 – 23.6 in H |
| Wrap Height, Inch | 48-71 cm / 18.9 – 27.9 in |
| Air Requirement | 4 CFM/min, 90 PSI |
| Voltage | 110 V / 60 Hz |
| Wattage/ Phases/ Amps | 0.5 kw / 1 ph /5A |
| Plug Type | NEMA 5-15P |
| Cable Length | 3.6 m / 11.8 ft |
| Fuse/Breaker Protected | Yes |
| Machine Dimensions | 221 x 135 x 53 cm / 87.01 x 53.15 x 20.87 in |
| Machine Weight | 113 kg / 249 lbs |
| Boxed Machine Size | 160 x 51 x 224 cm / 62.99 x 20.08 x 88.19 in |
| Boxed Machine Weight | 260 kg / 573 lbs |
