Specification:
| Model No | XT-RWM-01 |

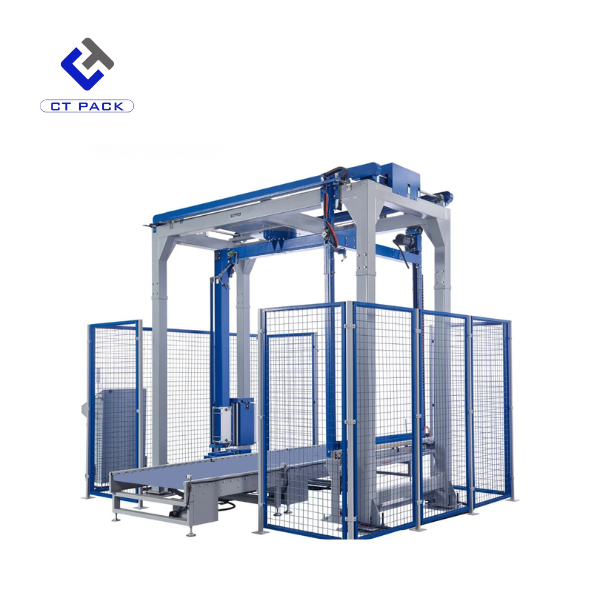

| Description | Inline automatic rotary arm pallet wrapper |
| Power Supply | 380V 50HZ 3phase |
| Control System | PLC and touch screen |

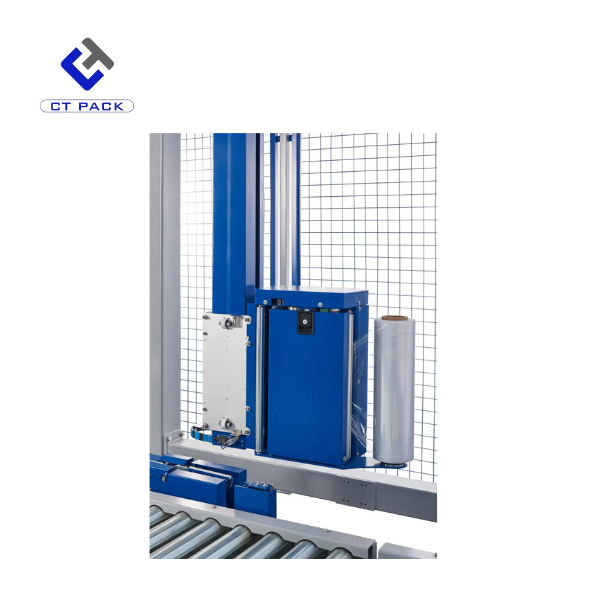

| Film Carriage | 250% Pre-stretch film carriage |
| Rotating Speed | 1-20 cycles/M |

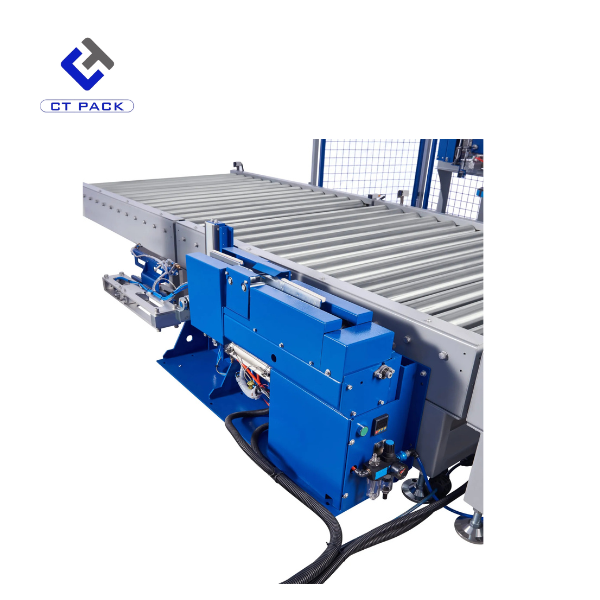

| Conveyor Speed | 15 meters/M |
| Max Pallet Height | 1800mm |
| Max Pallet Size | W(500-1200)mm x L(500-1200)mm |
| Film Cutting Method | Heat cutting |
| Conveyor Height | 450-600mm |
| Rotating Motor | 0.75kw |
| Pre-stretch Motor | 0.18kw |
| Lifting Motor | 0.18kw |
| Max Pallet Weight | 2000kg |
| Power | 3500W |
| Air | 0.4-0.7Mpa |
| Machine Weight (NW) | 1800kg |
| Machine Dimension | 3200 x 3220 x 3120mm |
