Specification:
| Model No | XT-4505-2 |

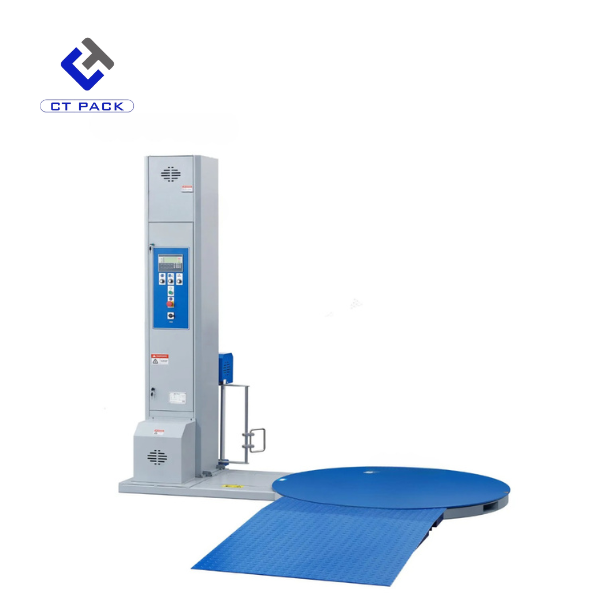

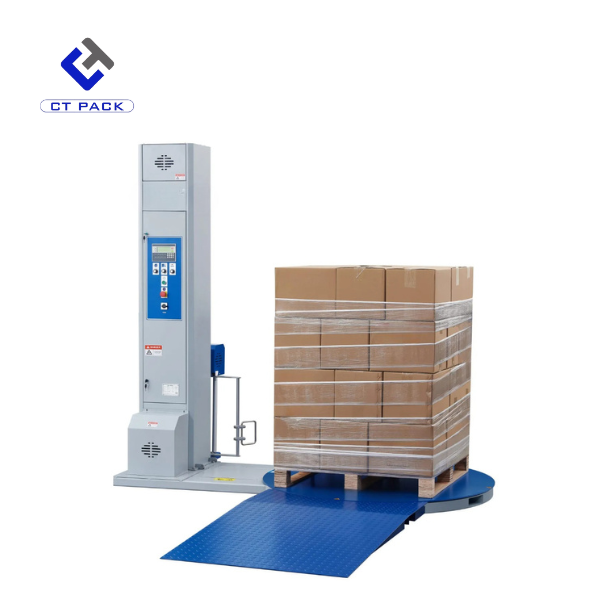

| Description | Turntable pallet wrapper |
| Power Supply | 220V 50HZ 1phase/110V 60hz 1phase |

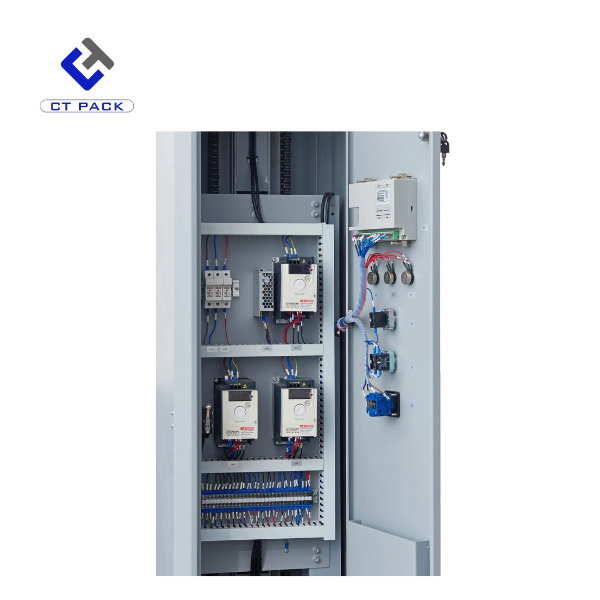

| Control System | PLC and touch screen |
| Film Carriage | 200% Pre-stretch film carriage |
| Turntable Speed | 1-10 cycles/M |
| Max Pallet Height | 2100mm(Option: 2600/3000mm) |

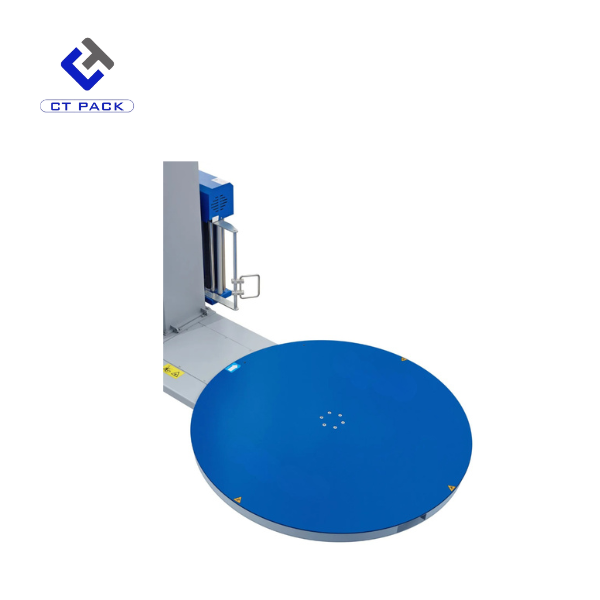

| Turntable diameter | 1500mm (Option: 1650/1800/2000mm) |
| Turntable height | 80mm |
| Turntable motor | 0.75kw |
| Pre-stretch motor | 0.18kw |
| Lifting Motor | 0.18kw |
| Max Pallet Weight | 1500kg |
| Power | 1200W |
| Machine Weight (NW) | 435kg |
| Machine Dimension ( L x W x H) | 2455 x 730 x 2200mm |
Application Film Specification:
| Film Type | Stretch film machine grade |
| Film Thickness | 17-23mic |
| Film roll inner diameter | 76mm |
| Film roll outside diameter | 250mm |
| Film width | 500mm |
| Film roll weight | 13.8kg |
