xt-8030p-semi-automatic-strapping-machine

Features

    • 5 seconds to enter into working status
    • 1V low voltage
    • 60 seconds stand-by time
    • Rigid mechanical parts
    • Tension detector or Round belt
    • Heater Temperature control

Specifications:

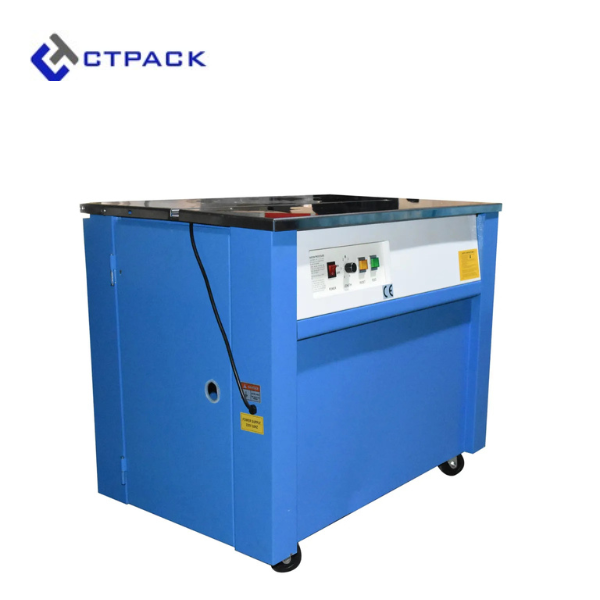

Model XT-8030P
Description High table semi-automatic strapping machine
Power Supply 220V 50HZ 1phase/110V 60hz 1phase
Control System PCB XUTIAN04
PP Strapping Width 6-15mm
PP Strapping Thickness 0.6-1.0mm
Strapping Roll Size Height: 200mm
Core: 200mm
Outer diameter:450mm
Max Strapping Tension 5-60kg
Strapping Size Min: 60 x 30mm
Max: No Limit
Strapping Speed </= 2.5 Seconds/Strap
sealing Method Heat Sealing
Power 600W
Max Loading Weight 180kg
Table Height 730mm
Machine Weight (NW) 85kg
Machine Dimention
L x W x H
895 x 585 x 730mm
